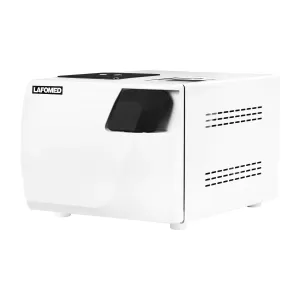

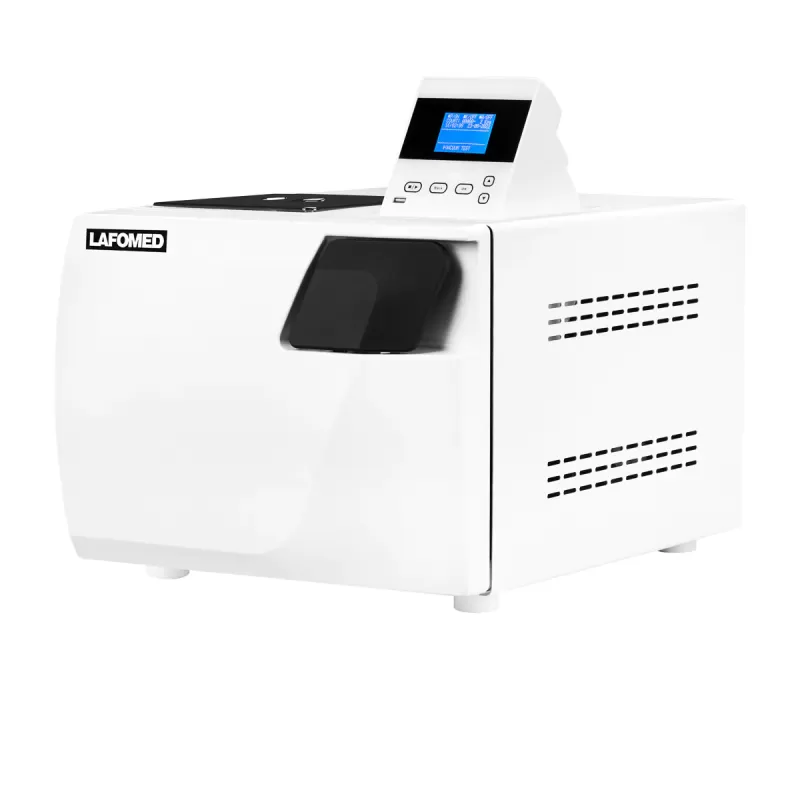

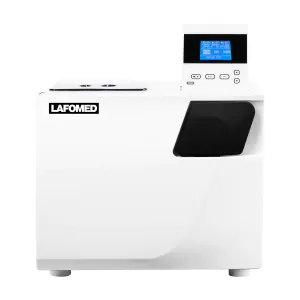

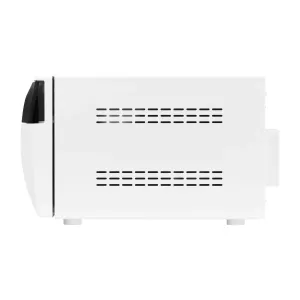

Autoclave Lafomed Compact LFSS18AD with printer 18 liters, class B, med.

Top class autoclave.

The Lafomed Compact Line autoclave is particularly recommended for hospital departments, dentistry and ophthalmology, as well as for biological institutes conducting research projects. Ideal for hairdressing and beauty salons, tattoo studios and aesthetic medicine salons. The device is designed to sterilize both medical and non-medical instruments. The Activeshop, custom designed, has features not found in other autoclaves, making this product particularly unique. Sterilization in the highest medical grade B autoclave ensures complete efficiency and safety.

Functionality you will appreciate

It is a compact unit that combines an 18-liter autoclave with a built-in thermal printer . It has an LCD display and a USB port that allows you to connect a storage medium to save cycle results. It has 10 fully automatic programs; 7 sterilization programs, 2 test programs and an autoclave cleaning program. In addition, it also has a user program function that allows complete freedom of choice of parameters. The menu is intuitive and the user-friendly interface is in Polish. Preheat and keep warm functions will also be useful. Autoclave Lafomed Compact Line is distinguished by the availability of quick sterilization programs with the possibility of controlling the drying time. The shortest sterilization and drying program lasts only 7 minutes. The device has a built-in tank for pure (distilled) water, which is used for sterilization, as well as a tank for waste water with the possibility of draining in the front of the device. The self-diagnostic system will effectively protect against breakdowns and preserve the longevity of the device. Additional security will be provided by the double door lock system. What distinguishes it from other Lafomed autoclaves is the extremely large capacity of tanks for clean and used water - up to 2.5 liters! Thanks to this, we do not have to refill and drain water frequently.

Automatic sterilization programs

Sterilization program Pressure Total cycle time*

121° Uniform 110 kPa 23 minutes

121° Porous 110 kPa 27 minutes

121° Concave 110 kPa 30 minutes

134° Uniform 210 kPa 7 minutes

134° Porous 210 kPa 11 min.

134° Concave 210 kPa 14 min.

135° Prions 210 kPa 29 minutes

Specification:

medical Grade B This is the highest grade of autoclave, allowing for maximum sterilization of unpackaged and packaged items, regardless of instrument type.

High quality The autoclave is manufactured to ISO 13485 standard and is CE 1023 certified. It also meets the requirements of the European standard BS EN 13060:2014+A1:2018.

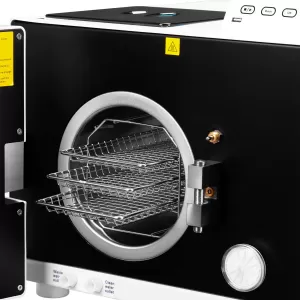

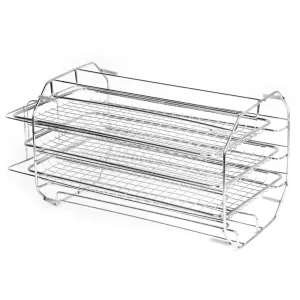

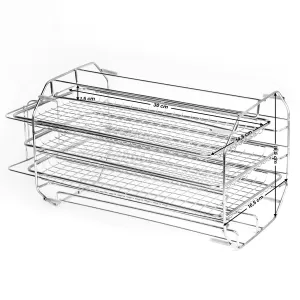

Capacity 18 liters An autoclave with a capacity of 18 liters is ideal for a beauty salon or tattoo parlor, for example. We insert a grill with three trays into the chamber.

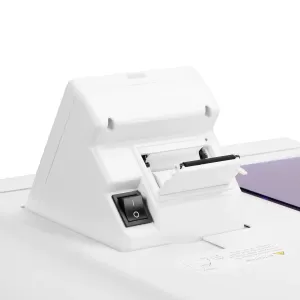

Integrated printer

No ink is required thanks to the use of thermal paper.

Sterilization of instruments in bulk or in packages. Class B autoclave allows sterilization of both unpackaged and packaged instruments (solid or hollow).

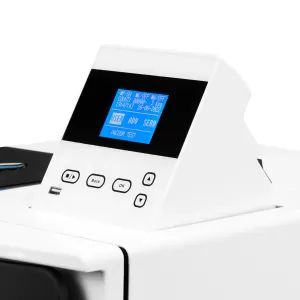

LCD display Indicates time, temperature, pressure and cycle progress.

Simple and efficient operation The intuitive menu allows you to quickly select a program or set parameters, and the user-friendly interface is in Polish.

10 automatic programs 7 sterilization programs, 2 test programs; Bowie and Dick, vacuum test and autoclave cleaning program.

User program Autoclave allows you to define your own sterilization program and set all parameters.

Cleaning Program Designed to clean the autoclave. It is especially noticeable when the message "CLEANING REQUIRED" appears.

USB port Save your data digitally on a flash drive and don't worry about losing or damaging the valuable evidence you need.

Hash function The last sterilization program performed will be remembered and easily accessible once the autoclave is turned on.

Autostart function Thanks to this function, you will start the corresponding program at a predetermined time. You can set a delayed program start for a specific date and time or for any number of hours later.

Preheat function

When this function is activated, the device preheats before setting a program or parameters.

Temperature maintenance function The autoclave will heat the chamber and activate the steam generator to maintain a constant warm temperature (maximum 8 hours). This reduces the time required to complete each sterilization cycle.

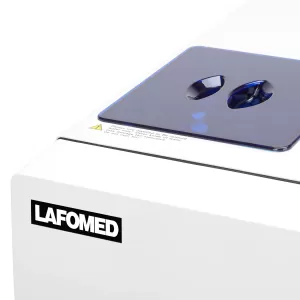

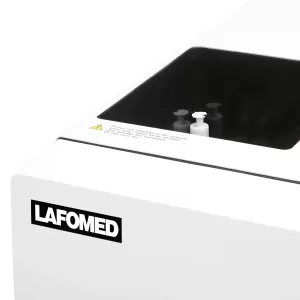

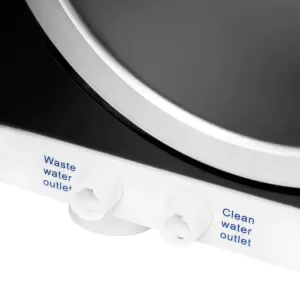

Integrated tanks for clean and used water. Capacity of each container is up to 2.5 liters. The clean water tank is for distilled or deionized water that will be used for sterilization. Having a wastewater tank means that we don't need to remember the external tank. The waste (and clean) water drain is located at the front of the unit.

Self-diagnostic system Effective protection against damage.

304 stainless steel chamber This makes it extremely durable and aesthetically pleasing, and proves the high quality of the unit.

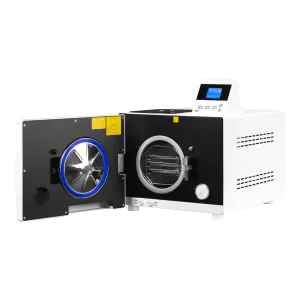

Double door lock An advanced system that provides mechanical and electronic door protection.

Complies with the requirements of the Sanitary and Epidemiologic Inspectorate The purchase of this autoclave must be notified to the Sanitary and Epidemiologic Inspectorate.

High quality bacterial filter. Replacement every 150 cycles, filters are available in our store.

Technical data:

Certifications and standards

CE 1023, ISO 13485,

BS EN 13060:2014+A1:2018.

Power 2.4 Question

Voltage 230V

Frequency 50Hz

Maximum working temperature 137℃

Maximum working pressure 0.21-0.23 MPa

Design pressure -0.1/0.27 MPa;

User program All parameters

Time control 4-60 min.

Drying time 1-25 min.

Vacuuming time 1-10 times

Automatic programs - 134°C Homogeneous

- 134°C Porous

- 134°C Concave

- 121°C Homogeneous

- 121°C Porous

- 121°C Concave

- 135°C Prions

- Purification

- Vacuum test

- Bowie and Dick / Helix test

Chamber capacity 18 years

External dimensions 65cm x 52cm x 42cm

Packaging size 73cm x 58cm x 50cm

Chamber dimensions ⌀ 25cm; depth 31cm

Chamber material stainless steel 304

Net weight 53 kg

Weight with packaging 61 kg
